D-17M image number 0
RETIRED
D-17M image number 1

D-17M

3.5 out of 5 Customer Rating

D-17M

RETIRED
3.5 out of 5 Customer Rating

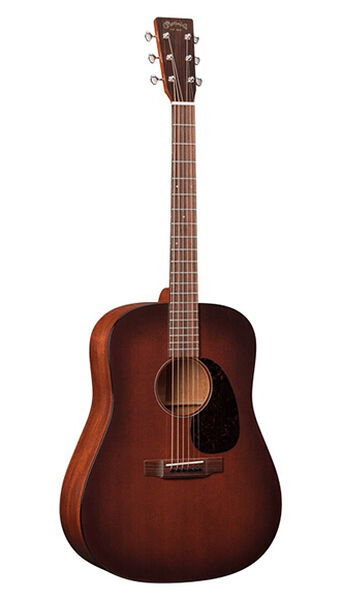

The D-17M features Spruce top, Mahogany sides, and Mahogany back. View the specifications below for more details.

D-17M

Overview

Body Size: D-14 Fret
Finish Top: Gloss
Construction: Simple Dovetail Neck Joint
Back and Side Finish: Satin
Bracing Pattern: X-Brace
Scale Length: 25.4"
Brace Shape: Non-Scalloped
Fingerboard Width at Nut: 1 11/16''
Top Material: Spruce
Neck Shape: Modified Low Oval
Back Material: Mahogany
Neck Taper: Standard Taper
Side Material: Mahogany
Electronics: None

Top

Top Color: Style 17 Shaded
Bridge Style: Belly - Drop in Saddle
Binding: Faux Tortoise
Bridge String Spacing: 2 1/8''
Top Inlay Material: None
Bridge Material: East Indian Rosewood
Top Detail: None
Bridge Pin Material: Ebony
Pickguard: Tortoise Pattern
Bridge Pin Dots: None
Pickguard Inlay: None
Saddle: Compensated Bone
Rosette: Style 17 Multi-Stripe
Saddle Radius: 16"

Body

Brace Material: Spruce
Back and Sides Color: Dark Mahogany
Brace Size: 5/16"
Back Detail: None
Back Purfling/Strip: None
Back Inlay Material: None
Heelcap: None
Side Detail: None
Endpiece: None
Side Inlay Material: None
Endpiece Inlay: None

Neck

Neck Material: Mahogany
Fingerboard Material: East Indian Rosewood
Finish Neck: Satin
Fingerboard Width at 12th Fret: 2 1/8''
Neck Color: Dark Mahogany
Fingerboard Inlay Style: Diamonds and Squares Short Pattern
Number of Frets Total: 20
Fingerboard Inlay Material: Abalone
Neck Joins Body At: 14th Fret
Fingerboard Binding Material: None
Side Dots: Yellow

Headstock

Headstock Shape: Solid with Square Taper
Tuning Machines: Nickel Open Gear
Headplate Material: East Indian Rosewood
Knob: Butterbean
Headplate Logo Style: Script Old Style Overlay
Nut Material: Bone
Headplate Binding Material: None
Headplate Detail: N/A

Misc

Case: Ply Hardshell
Left Handed Availability: true
Label: None
Pleked: true
