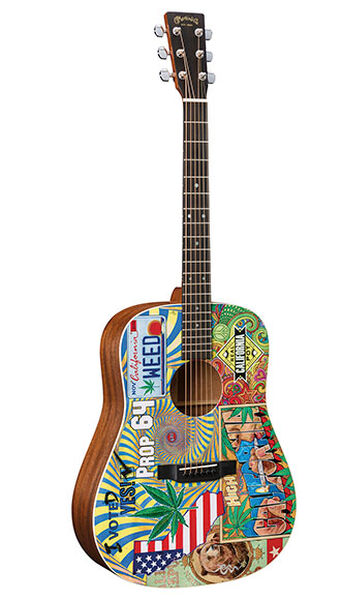

The D-420 features Spruce top, Mahogany sides, and Mahogany back. View the specifications below for more details.

D-420

Overview

Body Size: D-14 Fret
Finish Top: Satin
Construction: Simple Dovetail Neck Joint
Back and Side Finish: Satin
Bracing Pattern: Forward-Shifted X-Brace
Scale Length: 25.4"
Brace Shape: Scalloped
Fingerboard Width at Nut: 1 3/4''
Top Material: Spruce
Neck Shape: Modified Low Oval
Back Material: Mahogany
Neck Taper: High-Performance Taper
Side Material: Mahogany
Electronics: None

Top

Top Color: Custom Ink
Bridge Style: Modern Belly - Drop in Saddle
Binding: Antique White
Bridge String Spacing: 2 5/32"
Top Inlay Material: Black Stripe
Bridge Material: Ebony
Top Detail: Custom Design
Bridge Pin Material: Black Plastic
Pickguard: None
Bridge Pin Dots: None
Pickguard Inlay: None
Saddle: Compensated Bone
Rosette: None
Saddle Radius: 16"

Body

Brace Material: Spruce
Back and Sides Color: Dark Mahogany
Brace Size: 5/16"
Back Detail: None
Back Purfling/Strip: None
Back Inlay Material: None
Heelcap: Antique White
Side Detail: None
Endpiece: None
Side Inlay Material: Black Stripe
Endpiece Inlay: None

Neck

Neck Material: Select Hardwood
Fingerboard Material: Ebony
Finish Neck: Satin
Fingerboard Width at 12th Fret: 2 1/8''
Neck Color: Dark Mahogany
Fingerboard Inlay Style: Style 28
Number of Frets Total: 20
Fingerboard Inlay Material: Mother-of-Pearl
Neck Joins Body At: 14th Fret
Fingerboard Binding Material: None
Side Dots: Yellow

Headstock

Headstock Shape: Solid with Square Taper
Tuning Machines: Chrome Enclosed Gear
Headplate Material: Ebony
Knob: Large
Headplate Logo Style: Script Old Style Overlay
Nut Material: Bone
Headplate Binding Material: None
Headplate Detail: N/A

Misc

Case: Ply Hardshell
Label: Paper Label Signed by CFM IV and Robert Goetzel
Pleked: true
