This model is retired but may still be available at a dealer near you.

Specifications
Description
Reviews

Description

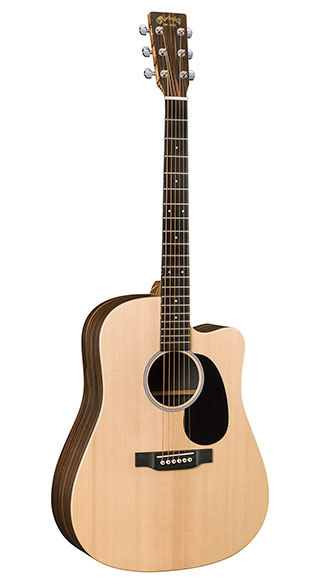

The DCX1AE Macassar features Spruce top, HPL sides, and HPL back. View the specifications below for more details.

Specifications

Highlights

D-14 Fret Cutaway body size
HPL back and sides
Spruce top
Clear
Performing Artist with High-Performance Taper
HPL back
N/A case
Top Material: Spruce
Finish Top: Hand-Rubbed
Top Color: Clear
Top Inlay Material: N/A
Top Detail: None
Binding: N/A
Bridge Material: FSC® Certified Richlite®
Bridge Style: Modern Belly - Drop in Saddle
Bridge String Spacing: 2 5/32"
Bridge Pin Material: White Plastic
Bridge Pin Dots: Black Plastic
Pickguard: Black
Pickguard Inlay: N/A
Rosette: Multi-Stripe
Saddle: Compensated White Tusq
Saddle Radius: 16"
Body Size: D-14 Fret Cutaway
Construction: Mortise & Tenon Neck Joint
Back Material: HPL
Side Material: HPL
Back and Side Finish: N/A
Back and Sides Color: None
Back Detail: Macassar Pattern
Side Detail: Macassar Pattern
Back Purfling/Strip: N/A
Back Inlay Material: None
Side Inlay Material: N/A
Bracing Pattern: X-Brace
Brace Shape: Non-Scalloped
Brace Material: Spruce
Brace Size: 5/16" with 1/4" Tone Bars
Heelcap: Black
Endpiece: N/A
Endpiece Inlay: N/A
Neck Shape: Performing Artist
Neck Taper: High-Performance Taper
Neck Material: Brown Birch Laminate
Neck Color: None
Finish Neck: Hand-Rubbed
Scale Length: 25.4"
Number of Frets Total: 20
Neck Joins Body At: 14th Fret
Fingerboard Material: FSC® Certified Richlite®
Fingerboard Width at 12th Fret: 2 1/8''
Fingerboard Width at Nut: 1 3/4''
Fingerboard Inlay Style: Dots
Fingerboard Inlay Material: White Plastic
Fingerboard Binding Material: N/A
Side Dots: White
Headstock Shape: Solid with Standard Taper
Headplate Material: HPL
Headplate Logo Style: Script Ink
Headplate Binding Material: None
Headplate Detail: Macassar Pattern
Tuning Machines: Chrome Enclosed Gear
Knob: Small
Nut Material: White Corian
Case: N/A
Label: Foil Label
Electronics: Fishman® Sonitone
Left Handed Availability: true

At A Glance

Body Shape & Volume

D-14 Fret Cutaway

Neck Shape

Performing Artist

RETIRED

DCX1AE Macassar

DCX1AE Macassar

5 out of 5 Customer Rating

This model is retired but may still be available at a dealer near you.
