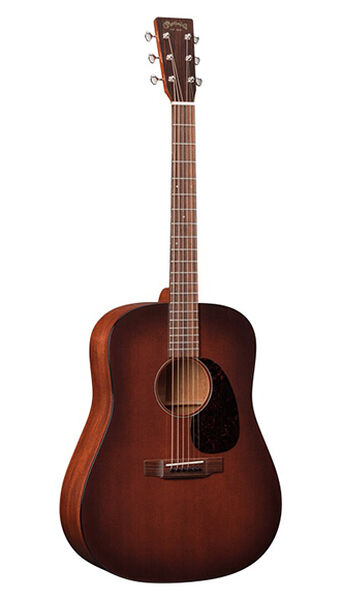

D-17M image number 0
D-17M image number 1

This model is retired but may still be available at a dealer near you.

Specifications
Description
Reviews

Description

The D-17M features Spruce top, Mahogany sides, and Mahogany back. View the specifications below for more details.

Specifications

Highlights

D-14 Fret body size
Mahogany back and sides
Spruce top
Style 17 Shaded
Modified Low Oval with Standard Taper
Mahogany back
Ply Hardshell case
Top Material: Spruce
Finish Top: Gloss
Top Color: Style 17 Shaded
Top Inlay Material: None
Top Detail: None
Binding: Faux Tortoise
Bridge Material: East Indian Rosewood
Bridge Style: Belly - Drop in Saddle
Bridge String Spacing: 2 1/8''
Bridge Pin Material: Ebony
Bridge Pin Dots: None
Pickguard: Tortoise Pattern
Pickguard Inlay: None
Rosette: Style 17 Multi-Stripe
Saddle: Compensated Bone
Saddle Radius: 16"
Body Size: D-14 Fret
Construction: Simple Dovetail Neck Joint
Back Material: Mahogany
Side Material: Mahogany
Back and Side Finish: Satin
Back and Sides Color: Dark Mahogany
Back Detail: None
Side Detail: None
Back Purfling/Strip: None
Back Inlay Material: None
Side Inlay Material: None
Bracing Pattern: X-Brace
Brace Shape: Non-Scalloped
Brace Material: Spruce
Brace Size: 5/16"
Heelcap: None
Endpiece: None
Endpiece Inlay: None
Neck Shape: Modified Low Oval
Neck Taper: Standard Taper
Neck Material: Mahogany
Neck Color: Dark Mahogany
Finish Neck: Satin
Scale Length: 25.4"
Number of Frets Total: 20
Neck Joins Body At: 14th Fret
Fingerboard Material: East Indian Rosewood
Fingerboard Width at 12th Fret: 2 1/8''
Fingerboard Width at Nut: 1 11/16''
Fingerboard Inlay Style: Diamonds and Squares Short Pattern
Fingerboard Inlay Material: Abalone
Fingerboard Binding Material: None
Side Dots: Yellow
Headstock Shape: Solid with Square Taper
Headplate Material: East Indian Rosewood
Headplate Logo Style: Script Old Style Overlay
Headplate Binding Material: None
Headplate Detail: N/A
Tuning Machines: Nickel Open Gear
Knob: Butterbean
Nut Material: Bone
Case: Ply Hardshell
Label: None
Electronics: None
Left Handed Availability: true
Pleked: true

At A Glance

Body Shape & Volume

D-14 Fret

Neck Shape

Modified Low Oval

RETIRED

D-17M

D-17M

3.5 out of 5 Customer Rating

This model is retired but may still be available at a dealer near you.
