This model is retired but may still be available at a dealer near you.

Specifications
Description
Reviews

Description

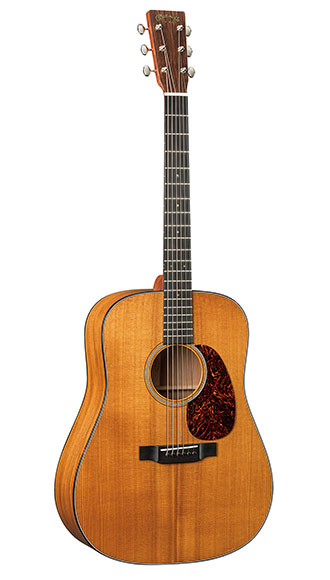

The D-18 Sycamore features Spruce with VTS top, Sycamore sides, and Sycamore back. View the specifications below for more details.

Specifications

Highlights

D-14 Fret body size
Sycamore back and sides
Spruce with VTS top
Modified Low Oval with High-Performance Taper neck
1 3/4'' fingerboard width at nut
Ply Hardshell case
Top Material: Spruce with VTS
Finish Top: Gloss
Top Color: Clear
Top Inlay Material: Multi-Stripe
Top Detail: None
Binding: Faux Tortoise
Bridge Material: Ebony
Bridge Style: 1930 Style Belly - Drop in Saddle
Bridge String Spacing: 2 3/16''
Bridge Pin Material: Black Plastic
Bridge Pin Dots: None
Pickguard: Tortoise Pattern
Pickguard Inlay: None
Rosette: Old Style 18 Multi-Stripe
Saddle: Compensated Bone
Saddle Radius: 16"
Body Size: D-14 Fret
Construction: Dovetail Neck Joint
Back Material: Sycamore
Side Material: Sycamore
Back and Side Finish: Gloss
Back and Sides Color: Maple
Back Detail: None
Side Detail: None
Back Purfling/Strip: Style 18
Back Inlay Material: None
Side Inlay Material: None
Bracing Pattern: Forward-Shifted X-Brace
Brace Shape: Scalloped
Brace Material: Spruce
Brace Size: 5/16"
Heelcap: Faux Tortoise
Endpiece: Faux Tortoise
Endpiece Inlay: None
Neck Shape: Modified Low Oval
Neck Taper: High-Performance Taper
Neck Material: Sycamore
Neck Color: Maple
Finish Neck: Satin
Scale Length: 25.4"
Number of Frets Total: 20
Neck Joins Body At: 14th Fret
Fingerboard Material: Ebony
Fingerboard Width at 12th Fret: 2 1/8''
Fingerboard Width at Nut: 1 3/4''
Fingerboard Inlay Style: Old Style 18
Fingerboard Inlay Material: Abalone
Fingerboard Binding Material: None
Side Dots: White
Headstock Shape: Solid with Square Taper
Headplate Material: East Indian Rosewood
Headplate Logo Style: Script Old Style Overlay
Headplate Binding Material: None
Tuning Machines: Nickel Open Gear
Knob: Butterbean
Nut Material: Bone
Case: Ply Hardshell
Label: Paper Label Signed by CFM IV, Numbered in Sequence
Electronics: None
Left Handed Availability: true
Pleked: true

At A Glance

Body Shape & Volume

D-14 Fret

Neck Shape

Modified Low Oval

RETIRED

D-18 Sycamore

D-18 Sycamore

3.9 out of 5 Customer Rating

This model is retired but may still be available at a dealer near you.
