RETIRED
D-28 Bigsby
D-28 Bigsby
RETIRED

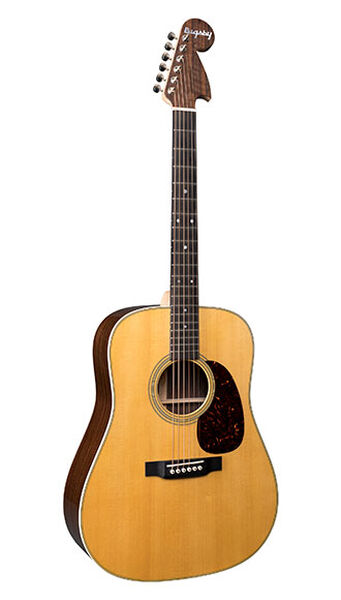

The D-28 Bigsby features Spruce top, East Indian Rosewood sides, and East Indian Rosewood back. View the specifications below for more details.
Overview
Body Size:
D-14 Fret
Finish Top:
Gloss
Construction:
Dovetail Neck Joint
Back and Side Finish:
Gloss
Bracing Pattern:
Forward-Shifted X-Brace
Scale Length:
25.4"
Brace Shape:
Non-Scalloped
Fingerboard Width at Nut:
1 3/4''
Top Material:
Spruce
Neck Shape:
Bigsby Style
Back Material:
East Indian Rosewood
Neck Taper:
High-Performance Taper
Side Material:
East Indian Rosewood
Electronics:
Optional
Top
Top Color:
Aging Toner
Bridge Style:
Modern Belly - Drop in Saddle
Binding:
Antique White
Bridge String Spacing:
2 5/32"
Top Inlay Material:
Multi-Stripe
Bridge Material:
Ebony
Top Detail:
None
Bridge Pin Material:
White Plastic
Pickguard:
Tortoise Pattern
Bridge Pin Dots:
Faux Tortoise
Pickguard Inlay:
None
Saddle:
Compensated Bone
Rosette:
Multi-Stripe
Saddle Radius:
16"
Body
Brace Material:
Spruce
Back and Sides Color:
None
Brace Size:
5/16"
Back Detail:
None
Back Purfling/Strip:
Style 28
Back Inlay Material:
Multi-Stripe
Heelcap:
Antique White
Side Detail:
None
Endpiece:
Antique White
Side Inlay Material:
None
Endpiece Inlay:
Multi-Stripe
Neck
Neck Material:
Hard Maple
Fingerboard Material:
Ebony
Finish Neck:
Satin
Fingerboard Width at 12th Fret:
2 1/8''
Neck Color:
None
Fingerboard Inlay Style:
Style 28
Number of Frets Total:
20
Fingerboard Inlay Material:
Mother-of-Pearl
Neck Joins Body At:
14th Fret
Fingerboard Binding Material:
None
Side Dots:
White
Headstock
Headstock Shape:
Solid with Bigsby Profile
Tuning Machines:
Nickel Enclosed Six in Line
Headplate Material:
Claro Walnut
Knob:
Oval
Headplate Logo Style:
None-Stamped on Back of Headstock
Nut Material:
Bone
Headplate Binding Material:
None
Headplate Detail:
N/A
Misc
Case:
Ply Hardshell
Label:
Paper Label- Signed by CFM IV and Fred Gretsch, Numbered w/ No Total
