RETIRED

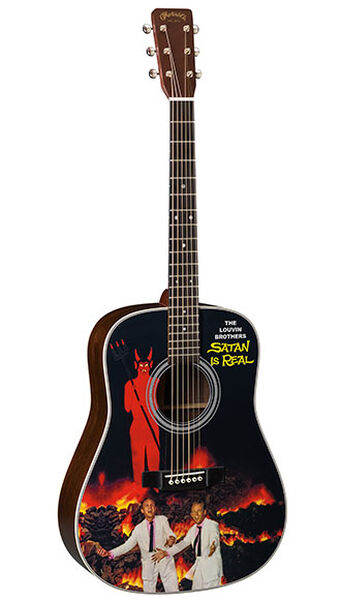

D-28 Louvin Brothers
D-28 Louvin Brothers
RETIRED
The D-28 Louvin Brothers features Spruce top, East Indian Rosewood sides, and East Indian Rosewood back. View the specifications below for more details.
Overview
Body Size:
D-14 Fret
Finish Top:
Gloss
Construction:
Dovetail Neck Joint
Back and Side Finish:
Gloss
Bracing Pattern:
Rearward-Shifted X-Brace
Scale Length:
25.4"
Brace Shape:
Non-Scalloped
Fingerboard Width at Nut:
1 3/4''
Top Material:
Spruce
Neck Shape:
Modified Low Oval
Back Material:
East Indian Rosewood
Neck Taper:
High-Performance Taper
Side Material:
East Indian Rosewood
Electronics:
Optional
Top
Top Color:
Custom Ink
Bridge Style:
Modern Belly - Drop in Saddle
Binding:
Grained Ivoroid
Bridge String Spacing:
2 3/16''
Top Inlay Material:
Multi-Stripe
Bridge Material:
Ebony
Top Detail:
N/A
Bridge Pin Material:
Bone
Pickguard:
N/A
Bridge Pin Dots:
Black Plastic
Pickguard Inlay:
N/A
Saddle:
Compensated Bone
Rosette:
Style 28 Multi-Stripe
Saddle Radius:
16"
Body
Brace Material:
Spruce
Back and Sides Color:
N/A
Brace Size:
5/16"
Back Detail:
N/A
Back Purfling/Strip:
Style 28
Back Inlay Material:
Multi-Stripe
Heelcap:
Grained Ivoroid
Side Detail:
N/A
Endpiece:
Grained Ivoroid
Side Inlay Material:
N/A
Endpiece Inlay:
Multi-Stripe
Neck
Neck Material:
Genuine Mahogany
Fingerboard Material:
Ebony
Finish Neck:
Satin
Fingerboard Width at 12th Fret:
2 1/8''
Neck Color:
Dark Mahogany
Fingerboard Inlay Style:
Style 28
Number of Frets Total:
20
Fingerboard Inlay Material:
Mother-of-Pearl
Neck Joins Body At:
14th Fret
Fingerboard Binding Material:
N/A
Side Dots:
Grained Ivoroid
Headstock
Headstock Shape:
Solid with Square Taper and Diamond
Tuning Machines:
Nickel Enclosed
Headplate Material:
East Indian Rosewood
Knob:
Oval
Headplate Logo Style:
Script Golden Era Overlay
Nut Material:
Bone
Headplate Binding Material:
N/A
Headplate Detail:
N/A
Misc
Case:
Ply Hardshell
Left Handed Availability:
true
Label:
Signed by CFM IV & Ken Louvin, Numbered in Sequence with Total (50)
Pleked:
true
