RETIRED

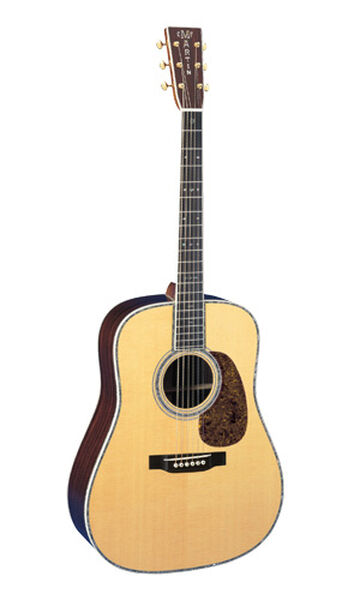

D-45V
D-45V
RETIRED
The D-45V features Spruce top, East Indian Rosewood sides, and East Indian Rosewood back. View the specifications below for more details.
Overview
Body Size:
D-14 Fret
Finish Top:
Gloss
Construction:
Dovetail Neck Joint
Back and Side Finish:
Gloss
Bracing Pattern:
Forward-Shifted X-Brace
Scale Length:
25.4"
Brace Shape:
Scalloped
Fingerboard Width at Nut:
1 11/16''
Top Material:
Spruce
Neck Shape:
Modified V
Back Material:
East Indian Rosewood
Neck Taper:
Standard Taper
Side Material:
East Indian Rosewood
Electronics:
Optional
Top
Top Color:
Aging Toner
Bridge Style:
Modern Belly - Drop in Long Saddle
Binding:
Grained Ivoroid
Bridge String Spacing:
2 1/8''
Top Inlay Material:
Abalone with Multi-Stripe
Bridge Material:
Ebony
Top Detail:
N/A
Bridge Pin Material:
White Plastic
Pickguard:
Tortoise Pattern
Bridge Pin Dots:
Abalone
Pickguard Inlay:
N/A
Saddle:
Bone
Rosette:
Abalone with Multi-Stripe
Saddle Radius:
16"
Body
Brace Material:
Spruce
Back and Sides Color:
N/A
Brace Size:
5/16"
Back Detail:
N/A
Back Purfling/Strip:
Style 45
Back Inlay Material:
Abalone with Multi-Stripe
Heelcap:
Grained Ivoroid
Side Detail:
N/A
Endpiece:
Grained Ivoroid
Side Inlay Material:
Abalone with Multi-Stripe
Endpiece Inlay:
Abalone with Multi-Stripe
Neck
Neck Material:
Genuine Mahogany
Fingerboard Material:
Ebony
Finish Neck:
Gloss
Fingerboard Width at 12th Fret:
2 1/8''
Neck Color:
Dark Mahogany
Fingerboard Inlay Style:
Style 45 Snowflake
Number of Frets Total:
20
Fingerboard Inlay Material:
Abalone
Neck Joins Body At:
14th Fret
Fingerboard Binding Material:
Grained Ivoroid
Side Dots:
Black
Headstock
Headstock Shape:
Solid with Square Taper and Diamond
Tuning Machines:
Gold Open Gear
Headplate Material:
East Indian Rosewood
Knob:
Butterbean
Headplate Logo Style:
Block Inlay
Nut Material:
Bone
Headplate Binding Material:
Ivoroid with Multi-Stripe
Headplate Detail:
N/A
Misc
Case:
Ply Hardshell
Left Handed Availability:
true
Label:
N/A
Pleked:
true
