RETIRED
D12X1AE
D12X1AE
RETIRED

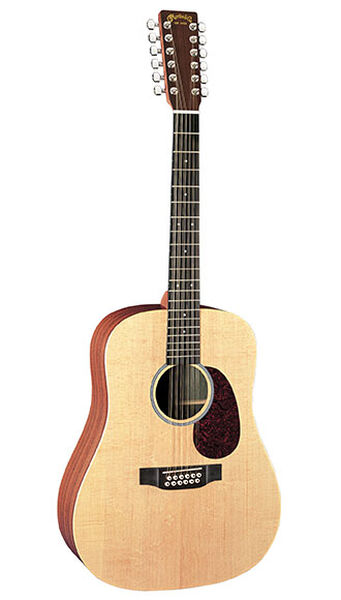

The D12X1AE features Spruce top, HPL sides, and HPL back. View the specifications below for more details.
Overview
Body Size:
D-14 Fret
Finish Top:
Hand-Rubbed
Construction:
Mortise & Tenon Neck Joint
Back and Side Finish:
N/A
Bracing Pattern:
X-Brace
Scale Length:
25.4"
Brace Shape:
Non-Scalloped
Fingerboard Width at Nut:
1 7/8''
Top Material:
Spruce
Neck Shape:
Low Profile
Back Material:
HPL
Neck Taper:
Standard Taper
Side Material:
HPL
Electronics:
Fishman® Sonitone
Top
Top Color:
Clear
Bridge Style:
Belly - 12 String
Binding:
N/A
Bridge String Spacing:
2 5/16''
Top Inlay Material:
None
Bridge Material:
FSC® Certified Richlite®
Top Detail:
N/A
Bridge Pin Material:
White Plastic
Pickguard:
Tortoise Pattern
Bridge Pin Dots:
Black Plastic
Pickguard Inlay:
N/A
Saddle:
Compensated White Tusq
Rosette:
Multi-Stripe
Saddle Radius:
16"
Body
Brace Material:
Spruce
Back and Sides Color:
N/A
Brace Size:
5/16" with 1/4" Tone Bars
Back Detail:
Mahogany Pattern
Back Purfling/Strip:
N/A
Back Inlay Material:
N/A
Heelcap:
Black
Side Detail:
Mahogany Pattern
Endpiece:
N/A
Side Inlay Material:
N/A
Endpiece Inlay:
N/A
Neck
Neck Material:
Rust Birch Laminate
Fingerboard Material:
FSC® Certified Richlite®
Finish Neck:
Hand-Rubbed
Fingerboard Width at 12th Fret:
2 5/16''
Neck Color:
N/A
Fingerboard Inlay Style:
Dots
Number of Frets Total:
20
Fingerboard Inlay Material:
White Plastic
Neck Joins Body At:
14th Fret
Fingerboard Binding Material:
N/A
Side Dots:
White
Headstock
Headstock Shape:
Solid with 12 String Taper
Tuning Machines:
Chrome Enclosed Gear
Headplate Material:
HPL
Knob:
Small
Headplate Logo Style:
Script Ink
Nut Material:
White Corian
Headplate Binding Material:
N/A
Headplate Detail:
Rosewood Pattern
Misc
Case:
N/A
Left Handed Availability:
true
Label:
Foil Label
