DX1AE image number 0
RETIRED
DX1AE image number 1

DX1AE

4 out of 5 Customer Rating

DX1AE

RETIRED
4 out of 5 Customer Rating

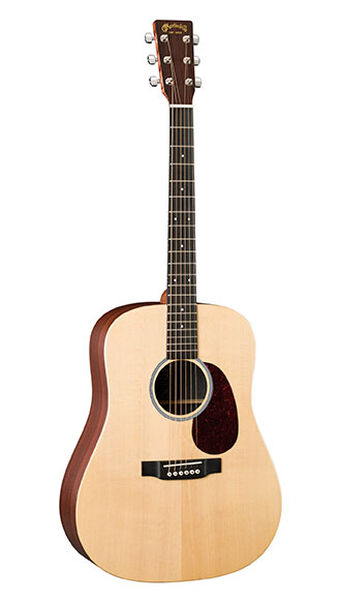

The DX1AE features Spruce top, HPL sides, and HPL back. View the specifications below for more details.

DX1AE

Overview

Body Size: D-14 Fret
Finish Top: Hand-Rubbed
Construction: Mortise & Tenon Neck Joint
Back and Side Finish: N/A
Bracing Pattern: X-Brace
Scale Length: 25.4"
Brace Shape: Non-Scalloped
Fingerboard Width at Nut: 1 3/4''
Top Material: Spruce
Neck Shape: Performing Artist
Back Material: HPL
Neck Taper: High-Performance Taper
Side Material: HPL
Electronics: Fishman® Sonitone

Top

Top Color: Clear
Bridge Style: Modern Belly - Drop in Saddle
Binding: N/A
Bridge String Spacing: 2 5/32"
Top Inlay Material: N/A
Bridge Material: FSC® Certified Richlite®
Top Detail: N/A
Bridge Pin Material: White Plastic
Pickguard: Tortoise Pattern
Bridge Pin Dots: Black Plastic
Pickguard Inlay: N/A
Saddle: Compensated White Tusq
Rosette: Multi-Stripe
Saddle Radius: 16"

Body

Brace Material: Spruce
Back and Sides Color: N/A
Brace Size: 5/16" with 1/4" Tone Bars
Back Detail: Mahogany Pattern
Back Purfling/Strip: N/A
Back Inlay Material: N/A
Heelcap: Black
Side Detail: Mahogany Pattern
Endpiece: N/A
Side Inlay Material: N/A
Endpiece Inlay: N/A

Neck

Neck Material: Rust Birch Laminate
Fingerboard Material: FSC® Certified Richlite®
Finish Neck: Hand-Rubbed
Fingerboard Width at 12th Fret: 2 1/8''
Neck Color: N/A
Fingerboard Inlay Style: Dots
Number of Frets Total: 20
Fingerboard Inlay Material: White Plastic
Neck Joins Body At: 14th Fret
Fingerboard Binding Material: N/A
Side Dots: White

Headstock

Headstock Shape: Solid with Standard Taper
Tuning Machines: Chrome Enclosed Gear
Headplate Material: HPL
Knob: Small
Headplate Logo Style: Script Ink
Nut Material: White Corian
Headplate Binding Material: N/A
Headplate Detail: Rosewood Pattern

Misc

Case: N/A
Left Handed Availability: true
Label: Foil Label
