RETIRED
HD-28VS
HD-28VS
RETIRED

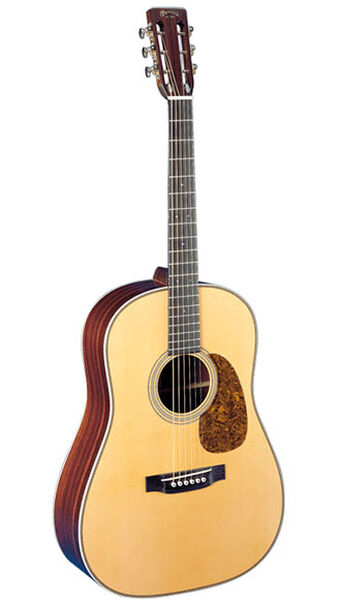

The HD-28VS features Spruce top, East Indian Rosewood sides, and East Indian Rosewood back. View the specifications below for more details.
Overview
Body Size:
D-12 Fret
Finish Top:
Gloss
Construction:
Dovetail Neck Joint
Back and Side Finish:
Gloss
Bracing Pattern:
X-Brace
Scale Length:
25.4"
Brace Shape:
Scalloped
Fingerboard Width at Nut:
1 3/4''
Top Material:
Spruce
Neck Shape:
Modified V
Back Material:
East Indian Rosewood
Neck Taper:
Standard Taper
Side Material:
East Indian Rosewood
Electronics:
Optional
Top
Top Color:
Aging Toner
Bridge Style:
Belly - Drop in Long Saddle
Binding:
Grained Ivoroid
Bridge String Spacing:
2 1/4''
Top Inlay Material:
Bold Herringbone
Bridge Material:
Ebony
Top Detail:
None
Bridge Pin Material:
White Plastic
Pickguard:
Tortoise Pattern
Bridge Pin Dots:
Faux Tortoise
Pickguard Inlay:
None
Saddle:
Bone
Rosette:
Style 28 Multi-Stripe
Saddle Radius:
16"
Body
Brace Material:
Spruce
Back and Sides Color:
None
Brace Size:
5/16"
Back Detail:
None
Back Purfling/Strip:
Zig-Zag
Back Inlay Material:
Multi-Stripe
Heelcap:
Grained Ivoroid
Side Detail:
None
Endpiece:
Grained Ivoroid
Side Inlay Material:
None
Endpiece Inlay:
Multi-Stripe
Neck
Neck Material:
Select Hardwood
Fingerboard Material:
Ebony
Finish Neck:
Satin
Fingerboard Width at 12th Fret:
2 1/4''
Neck Color:
Dark Mahogany
Fingerboard Inlay Style:
Diamonds & Squares - Long Pattern
Number of Frets Total:
19
Fingerboard Inlay Material:
Abalone
Neck Joins Body At:
12th Fret
Fingerboard Binding Material:
None
Side Dots:
White
Headstock
Headstock Shape:
Slotted with Square Taper and Diamond
Tuning Machines:
Nickel Side Mount
Headplate Material:
East Indian Rosewood
Knob:
Butterbean
Headplate Logo Style:
Script Old Style Overlay
Nut Material:
Bone
Headplate Binding Material:
None
Headplate Detail:
N/A
Misc
Case:
Ply Hardshell
Left Handed Availability:
true
Label:
None
Pleked:
true
