This model is retired but may still be available at a dealer near you.

Specifications
Description
Reviews

Description

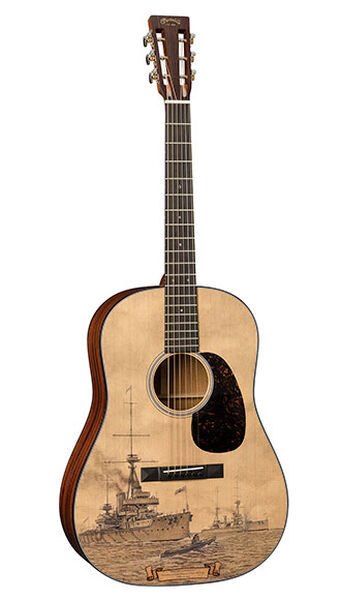

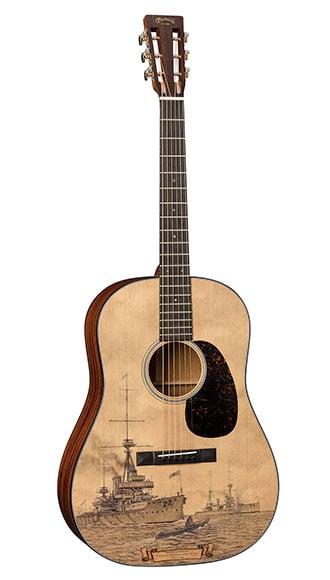

The LE-HMSD 2015 features Spruce with VTS top, Mahogany sides, and Mahogany back. View the specifications below for more details.

Specifications

Highlights

D-12 Fret body size
Mahogany back and sides
Spruce with VTS top
Custom Ink
Modified V with Standard Taper
Mahogany back
Ply Hardshell case
Top Material: Spruce with VTS
Finish Top: Gloss
Top Color: Custom Ink
Top Inlay Material: Multi-Stripe
Top Detail: None
Binding: Faux Tortoise
Bridge Material: Ebony
Bridge Style: Pyramid - Drop in Saddle
Bridge String Spacing: 2 1/4''
Bridge Pin Material: Black Plastic
Bridge Pin Dots: None
Pickguard: Tortoise Pattern
Pickguard Inlay: N/A
Rosette: Old Style 18 Multi-Stripe
Saddle: Compensated Bone
Saddle Radius: 16"
Body Size: D-12 Fret
Construction: Dovetail Neck Joint
Back Material: Mahogany
Side Material: Mahogany
Back and Side Finish: Gloss
Back and Sides Color: Dark Mahogany
Back Detail: None
Side Detail: None
Back Purfling/Strip: Style 18
Back Inlay Material: None
Side Inlay Material: None
Bracing Pattern: X-Brace
Brace Shape: Scalloped
Brace Material: Spruce
Brace Size: 5/16"
Heelcap: Faux Tortoise
Endpiece: Faux Tortoise
Endpiece Inlay: None
Neck Shape: Modified V
Neck Taper: Standard Taper
Neck Material: Genuine Mahogany
Neck Color: Dark Mahogany
Finish Neck: Satin
Scale Length: 25.4"
Number of Frets Total: 19
Neck Joins Body At: 12th Fret
Fingerboard Material: Ebony
Fingerboard Width at 12th Fret: 2 1/4''
Fingerboard Width at Nut: 1 3/4''
Fingerboard Inlay Style: Old Style 18
Fingerboard Inlay Material: Abalone
Fingerboard Binding Material: None
Side Dots: White
Headstock Shape: Slotted with Square Taper
Headplate Material: East Indian Rosewood
Headplate Logo Style: Script Old Style Overlay
Headplate Binding Material: None
Headplate Detail: N/A
Tuning Machines: Nickel Side Mount
Knob: Butterbean
Nut Material: Bone
Case: Ply Hardshell
Label: Paper Label Signed by CFM IV, Numbered in Sequence
Electronics: Optional
Pleked: true

At A Glance

Body Shape & Volume

D-12 Fret

Neck Shape

Modified V
